Premier Mounts PDS-PLUS CLS and PP-FCMA Bundle PDS-FCMA

Premier Mounts PDS-PLUS CLS and PP-FCMA Bundle PDS-FCMA

PREMIER MOUNTS | Mfg Part # PDS-FCMA | Item Number PREM-PDS-FCMA
Availability: In Stock
Delivery Options: Free Shipping! No Tax outside NC
MSRP $278.00
Price with Free Shipping $194.60 You Save $83.40
See additional information on the Premier Mounts PDS-PLUS, CLS and PP-FCMA Bundle PDS-FCMA below. Certified mounting experts are here to help. Call 1-800-807-1477.

Premier Mounts' Universal Projector Mount fit most projectors that weigh less than 75 lbs. and mate with standard 1.5" NPT so cables can be routed inside pipe routing for a neat appearance. It features:

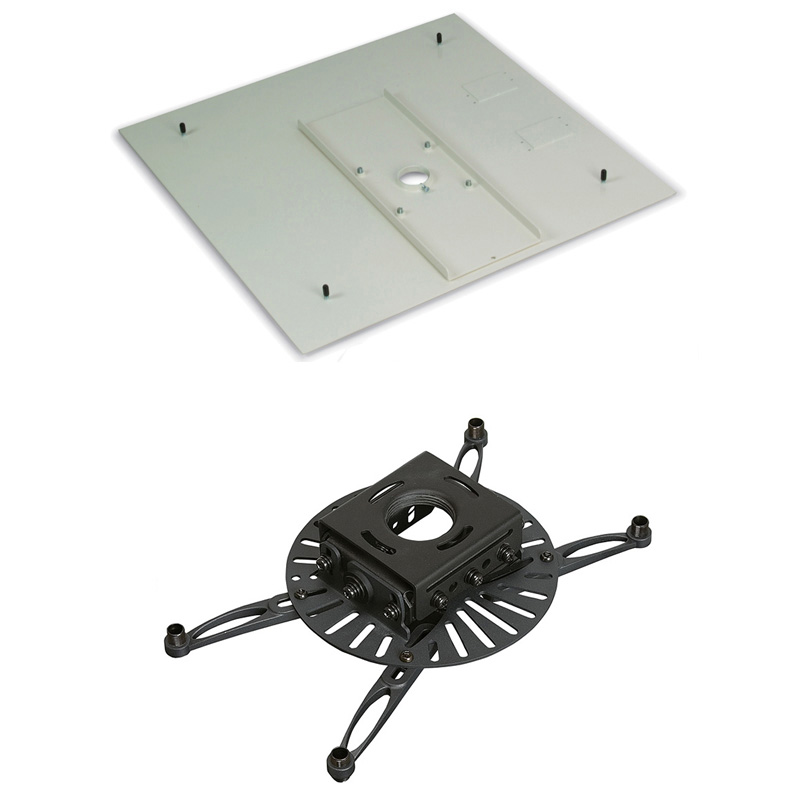

  • Kit includes PDS-PLUS mount, CLS pipe adapter and PP-FCMA full tile false ceiling adapter
  • Fits projectors up to 75 lbs with mounting patterns within 16.43" diameter
  • Integrated coupler mates with standard 1.5" NPT.
  • PP-FCMA replaces standard 2' x 2' ceiling tile.

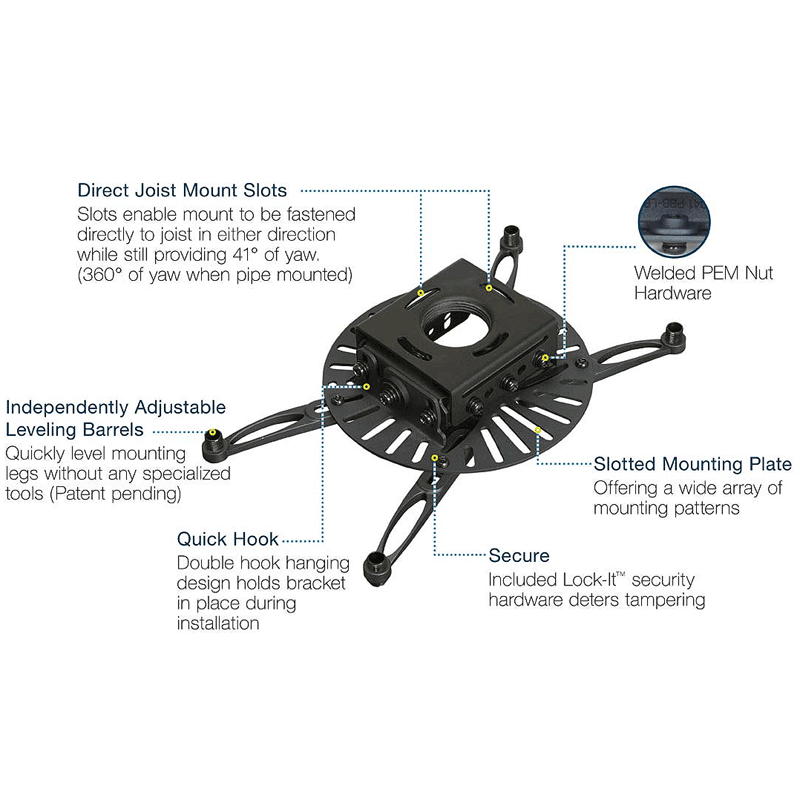

  • Slotted mounting base with six interchangeable legs (four long and two short) to reach wider mounting points
  • PP-FCMA includes 100 feet of 14-guage wire and (4) turnbuckles.
  • Lock-It™ security hardware deters theft.
  • Cable routing inside pipe.
  • Dual electrical knockouts.
  • Powdercoat finish.
  • Yaw (+/-41°)
  • Pitch (+/-16.5°)
  • Roll (+/-16.5°)
  • Lifetime Warranty


Unit Weight: Weight Capacity:
   35 lbs    75 lbs

Click Here for Assembly Instructions!

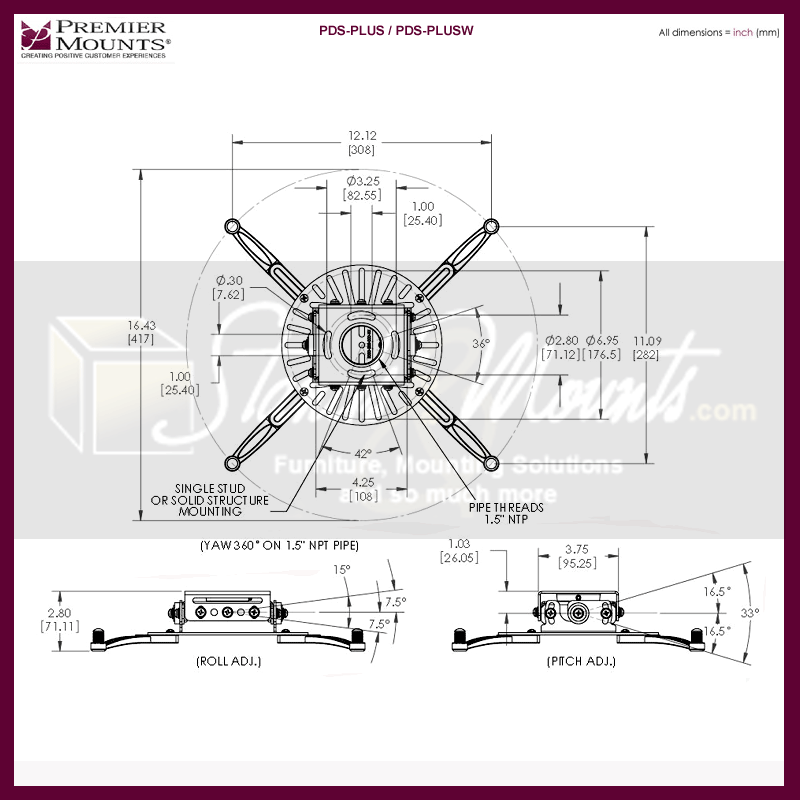

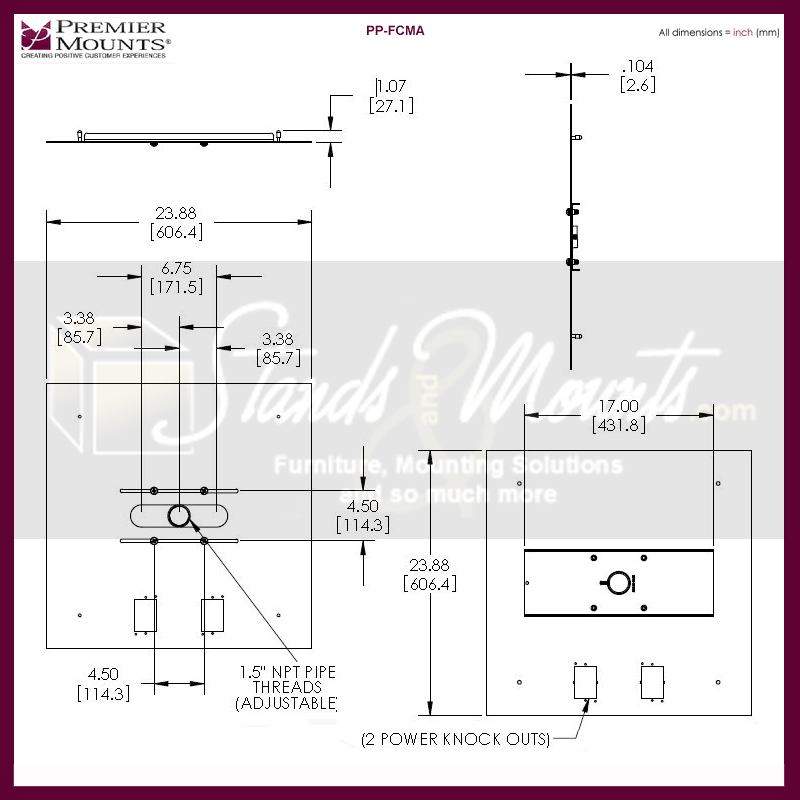

Click on the last image above for technical specifications.

Manufacturer Details

 CLICK HERE to view more products by this manufacturer.



CLICK HERE to ask a product question, or give us a call at 1-800-807-1477.

Condition: new
Color: Black
Weight: 35 pounds
Delivery Options: Free Shipping
Weight Capacity: 75 Pounds
Placement of Mount: Ceiling
Use of Mount: Projector
Pitch: +/-16.5 deg.
Roll: +/-16.5 deg.
Yaw: +/-41 deg.
Projector Mounting Pattern Reach: 00.01" - 14.00", 14.01" - 15.00", 15.01" - 16.00", 16.01" - 17.00"
Item Number PREM-PDS-FCMA
Manufacturer PREMIER MOUNTS
Mfg Part # PDS-FCMA
