Premier Mounts CTM Series Tilt Mount for Walls Stands or Carts (Black) CTM

Designed for horizontal plasma mounting on walls, stands or carts, Premier Mounts' CTM series "Clevis" mounts offer significant tilt, built-in lateral shift and high quality construction. It features:

• An adjustable 12 degree forward tilt.
• Built-in lateral shift for precise display positioning.
• Adjustable bracket hook tension for secure support.
• Easy mounting on either 16 or 24" on-center wood studs. (Also mountable to presentation stands, carts, desks and suspension devices.)
• Included wood stud mounting hardware.
• A low-profile design, allowing only 2.294" distance between the screen and wall.
• Premier Mounts' limited "Manufacturer's Lifetime Warranty."
• Available in a Black powder coat professional finish.
• Available in various sizes to accomodate nearly every flat panel (choose model above).
• 160 lbs weight capacity (300 lb capacity for CTM-MS4).

Model Details:

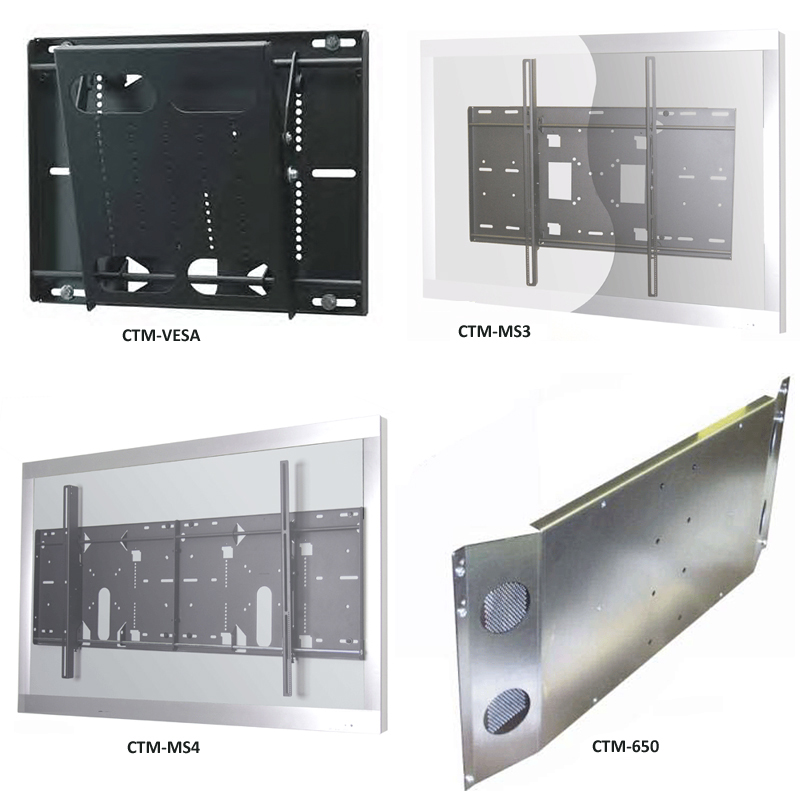

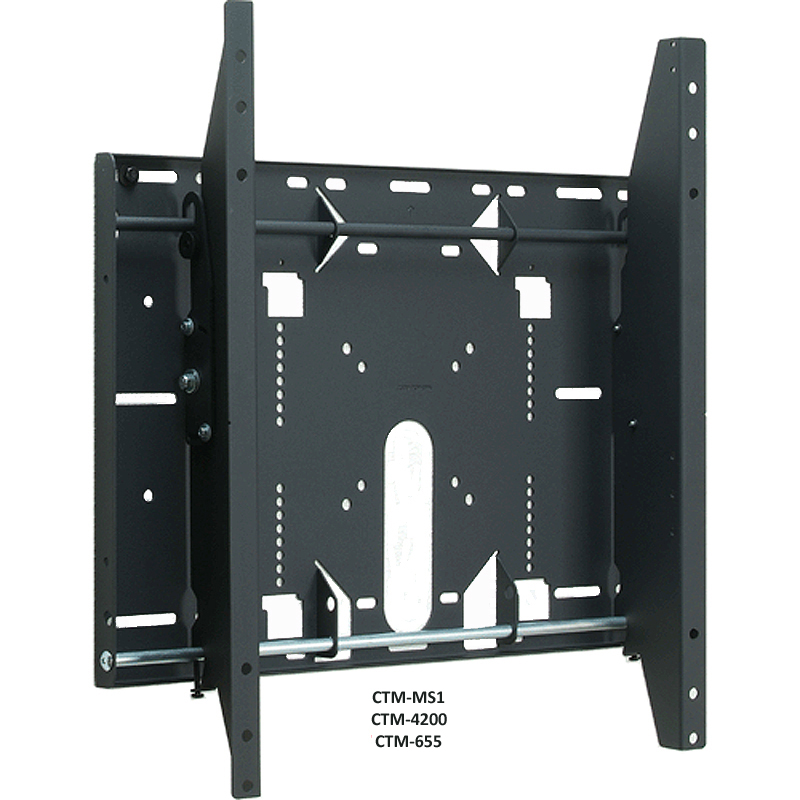

CTM-MS1: Fits most 24-36" flat panel TV's with mounting patterns up to 495 x 362 mm (19.48"W x 14.25"H).

CTM-MS2: Fits most 37-80" flat panel TV's with mounting patterns up to 800 x 500 mm (31.49"W x 19.68"H).

CTM-MS3: Fits most 55-80" flat panel TV's with mounting patterns up to 925 x 720 mm (36.41"W x 28.34"H).

CTM-MS4: Fits most 60-84" flat panel TV's with mounting patterns up to 1355 x 720 mm (53.34"W x 28.34"H) *MS4 is a wall mount ONLY and does NOT attach to stands or carts.

Click Here for Assembly Instructions (CTM-MS2)!

Click on the last image above for technical specifications.
