Peerless In-Line Linear Pipe Structure for Multiple Screens MDJ7

A wonderful merchandising tool for high-impact visual displays, the MDJ multi-display pipe structures are available in linear, circular or curvilinear models, designed to support 3-5 PLCM-2 or PLCM-2-UNL flat panel mounts. As part of that collection, the MDJ features:

• Independent 0-30° tilt.
• Optional convex or concave positioning.
• Concealed wire routing.
• A scratch-resistant, black, fused epoxy finish.
• 1.9" OD, heavy-gauge steel piping.

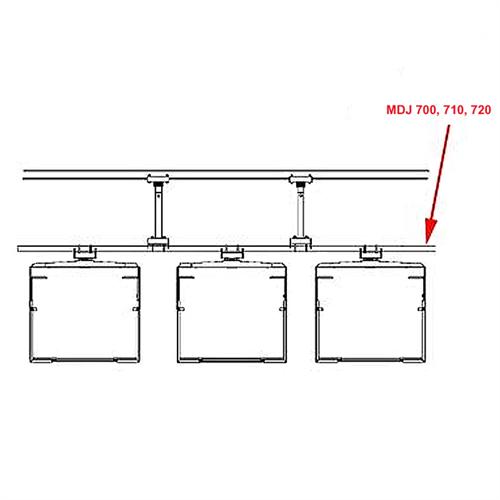

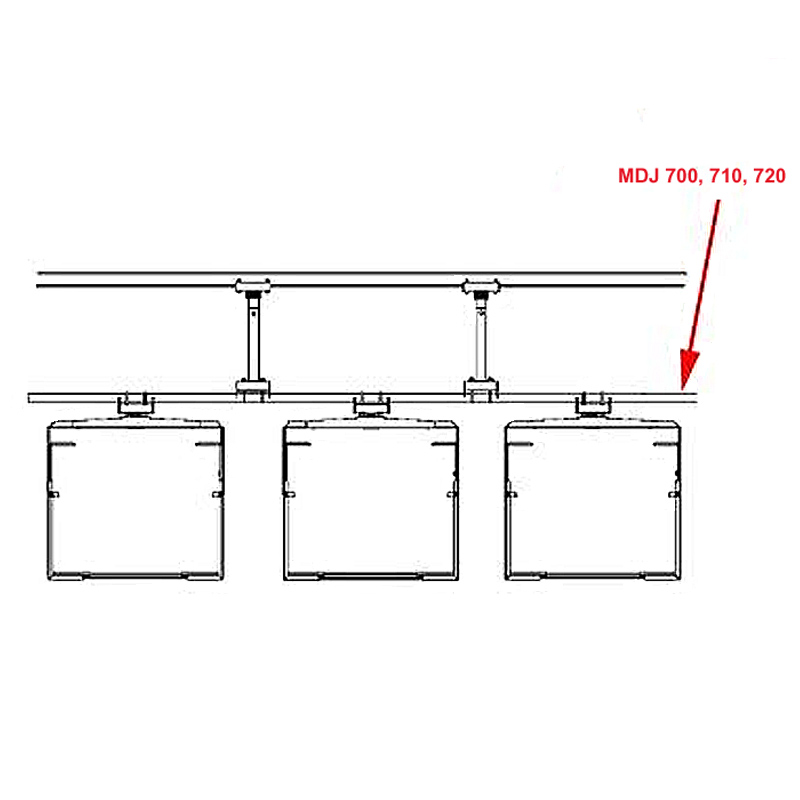

Model Details :

• MDJ700, which is 120" (10 feet) long and holds up to 1000 pounds.
• MDJ710, which is 180" (15 feet) long and holds up to 1200 pounds.
• MDJ720, which is 240" (20 feet) long and holds up to 1500 pounds.

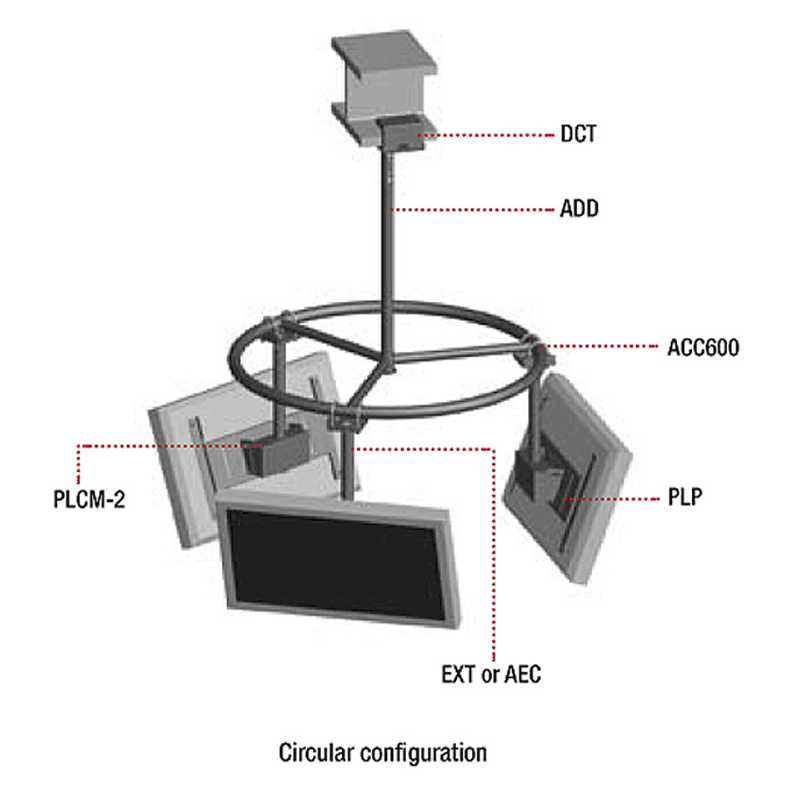

For complete installation, this system requires SIX or SEVEN individual parts in various quantities depending on the type and number of screens to be mounted. These parts are as follows and can all be found under "Related Products" below:

• DCT-series ceiling decoupler
• ACC-600 interface bracket to MDJ mount
• MDJ in-line, curvi-linear or circular mounting structure
• EXT, ADD or AEC fixed or adjustable-length support column
• PLCM-2 or PLCM-2-UNL TV mount
• PLP model-specific screen adapter plate, if PLCM-2 flat panel mount is used (Please use Peerless's Mount Finder tool for help selecting the appropriate PLP adapter.)

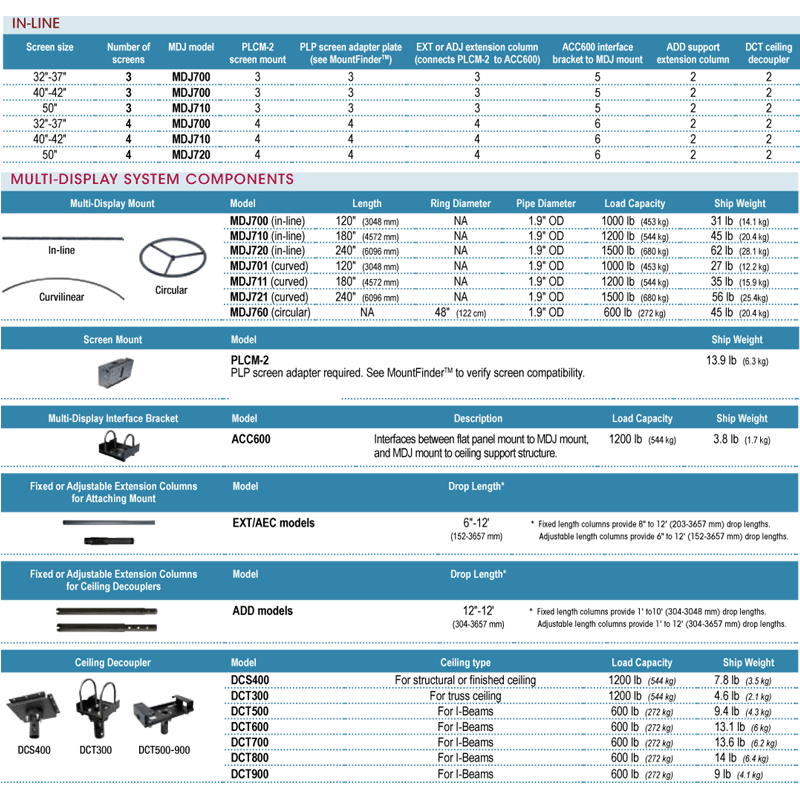

PLEASE NOTE: Each order includes one steel pipe. Mounts and hardware are sold separately. Click on the last image above for a chart detailing the parts and quantities needed to complete your set-up. Sound confusing? Call our Sales Team for help.
