Chief Elite Projector Mount with Keyed Locking (Black Silver or White) RPM

Chief Elite Projector Mount with Keyed Locking (Black Silver or White) RPM

CHIEF | Mfg Part # RPMAU, RPMBUS, RPMCUW | Item Number CHF-RPM
Availability: In Stock
Delivery Options: Free Shipping! No Tax outside NC
MSRP $246.00
Price with Free Shipping $203.20 You Save $42.80

* denotes required field

Discount Alert*
Choose Security Feature*
Choose Interface Model*
See additional information on the Chief Elite Projector Mount with Keyed Locking (Black, Silver or White) RPM below. Certified mounting experts are here to help. Call 1-800-807-1477.

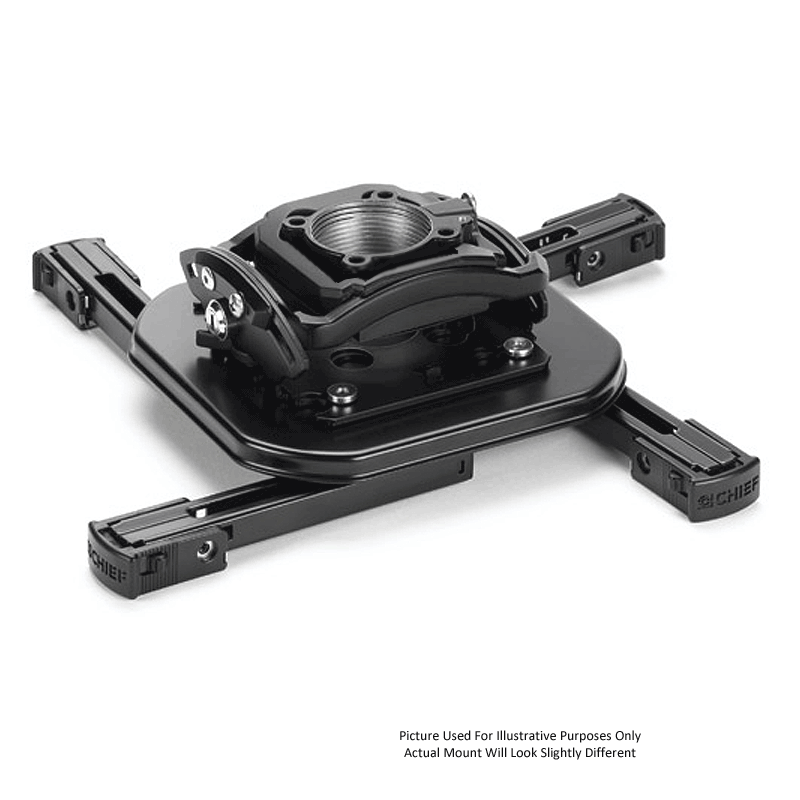

Chief's new RPM mount is an upgraded, "Elite" version of its popular RPA inverted projector mount. It is available in a custom or universal model.

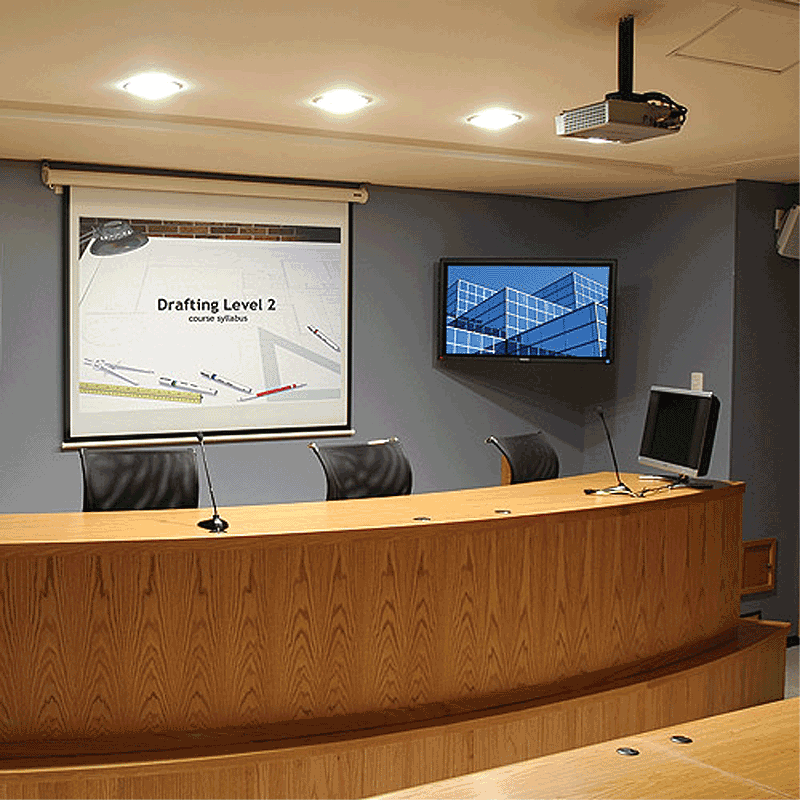

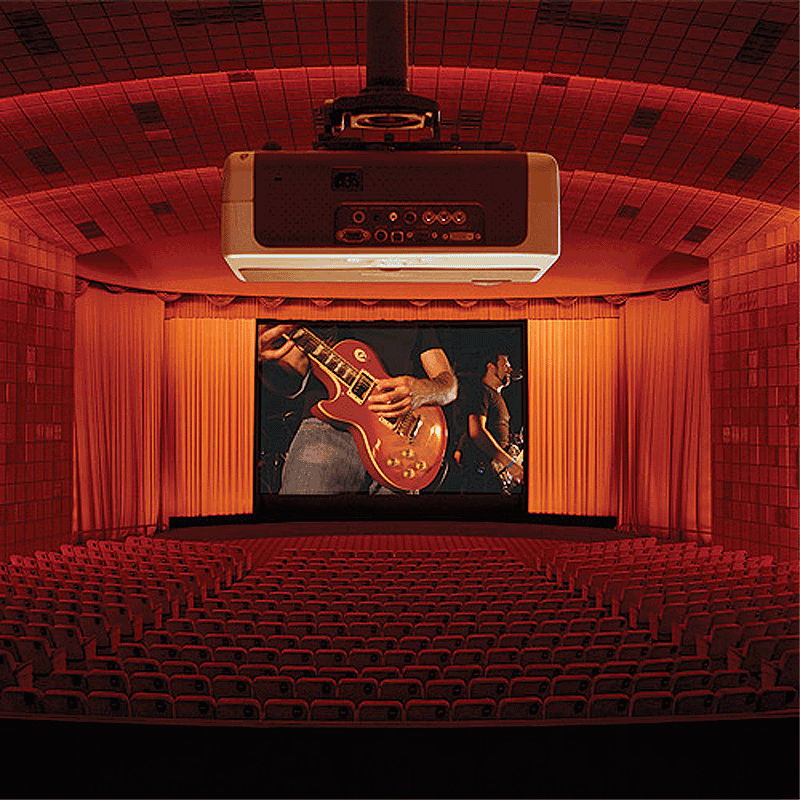

An ideal solution for offices, boardrooms, schools, churches and all sophisticated home theaters, the RPM inverted projector mount features:

  • Chief's trademark "Speed-Connect" accessory line and fully-assembled shipping for faster, easier installation.
  • Optional "Q-lock security system for integrated theft protection. (Three key and lock combinations are available. Please designate A, B or C, using the drop-down menu above.)
  • A 50 pound weight capacity.
  • -/+ 20 degree tilt, -/+ 3 degree leveling and 360 degree rotation for ideal positioning in any installation.
  • Quick projector disconnect (and reconnect) while maintaining registration.
  • Patented "Centris" mounting technology, which self-adjusts to support different projector weights.
  • Effortless, fingertip positioning using "MicroZone" adjustments for fast and precise registration.
  • Three optional mounting methods: flush with ceiling (which reduces the tilt to +/-12 degrees), 1/4" threaded rod (not included) or 1.5" NPT threaded extension column (also not included).
  • One custom-designed SLM-series interface bracket, providing easy access for lamp changes, filter cleaning and routine maintenance.
  • Convenient lamp and filter access for easy projector maintenance and cleaning.
  • Integrated cable management, through the top of the mount.
  • Natural convection ventilation.

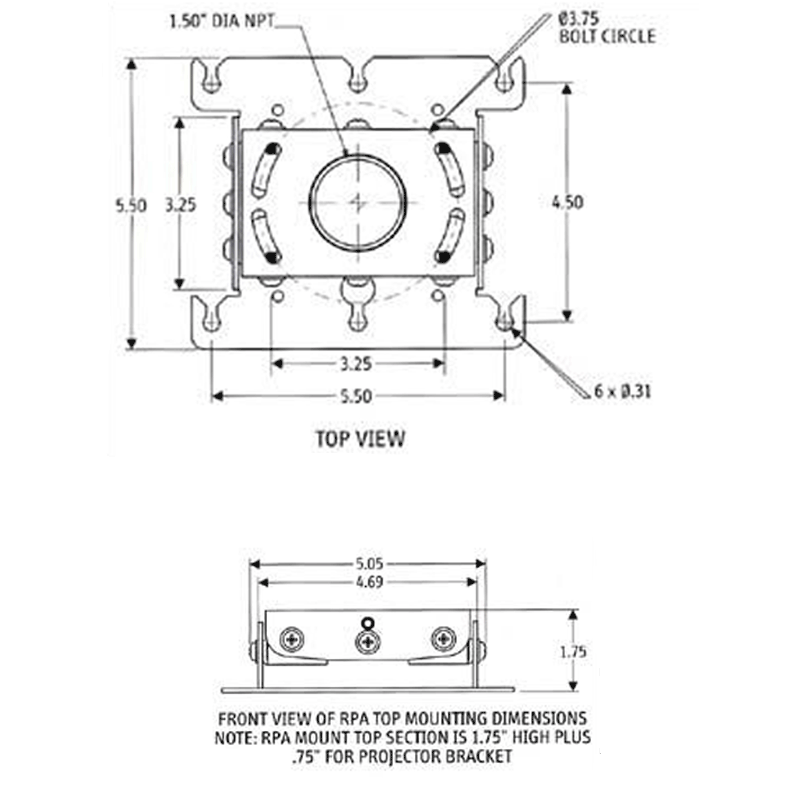

  • Mounting Reach: 15.74" Diameter

Please Note: Universal is available in black, silver or white. Model specific models are available in Black only.

There are only three key/lock combinations available, keys for Option A will not work with Option B or C locks, etc.

Condition: new
Color: Silver, Black, White
Height: 02.70 in.
Width: 06.50 in
Depth: 05.50 in.
Weight: 6 pounds
Delivery Options: Free Shipping
Weight Capacity: 50 lbs (22.7 kg)
Placement of Mount: Ceiling
Use of Mount: Projector
Tilt: +/- 20 degrees
Rotate: 360 degrees
Pitch: ±20°
Roll:
Yaw: 360°
Feature of Projector Mount: All-in-One Kits, Security
Projector Mounting Pattern Reach: 00.01" - 14.00", 14.01" - 15.00", 15.01" - 16.00"
Item Number CHF-RPM
Manufacturer CHIEF
Mfg Part # RPMAU, RPMBUS, RPMCUW
