Premier Mounts Ultra Short Throw Projector Wall Arm with PDS Mount UNI-UPDS

Premier Mounts Ultra Short Throw Projector Wall Arm with PDS Mount UNI-UPDS

Availability: In Stock

Free Shipping : Delivered typically in 3-7 days. Expedited options available.
MSRP $459.00
Price Call for Availability and Pricing
More on the Premier Mounts Ultra Short Throw Projector Wall Arm with PDS Mount UNI-UPDS below. Call our Premier Mounts experts at 1-800-807-1477.

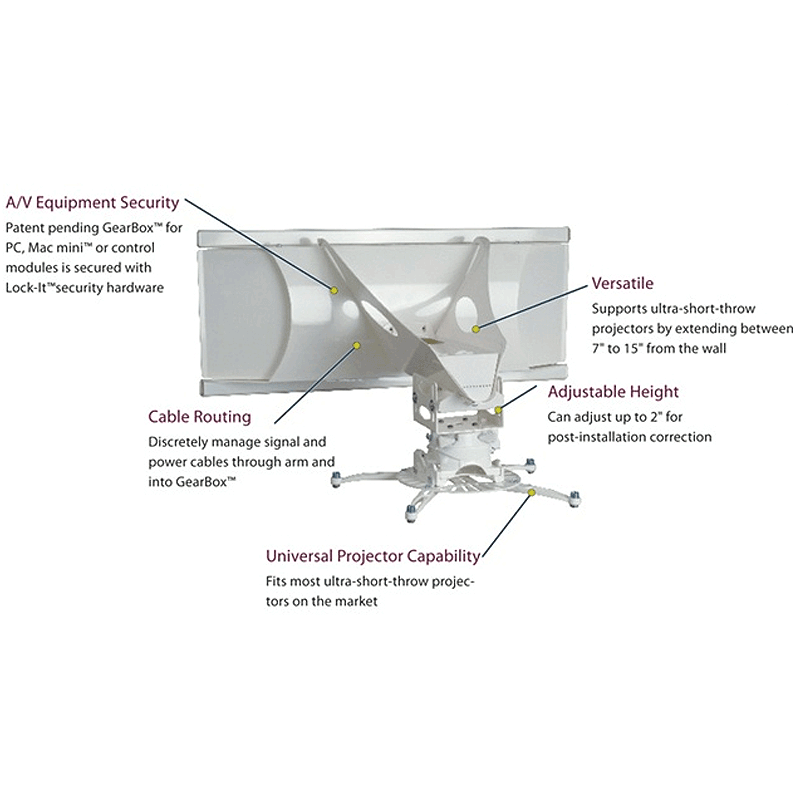

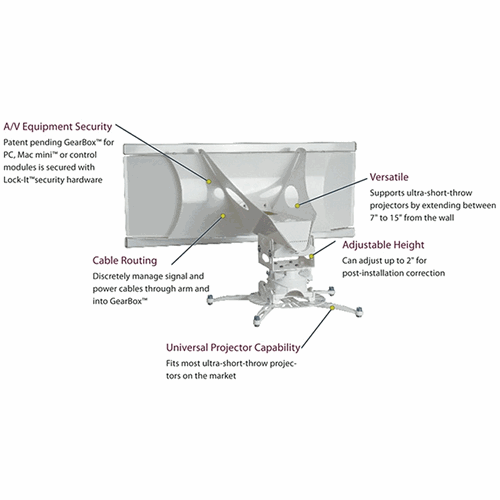

Premier Mounts' new "Universal Ultra-Short-Throw Projector Arm" is designed to support all the latest short-throw projectors, offering more adjustability than any other projector arm on the market. The UNI-UPDS is the most flexible and installer-friendly short-throw arm on the market. It features:

  • Standard 6.5-18" extension.

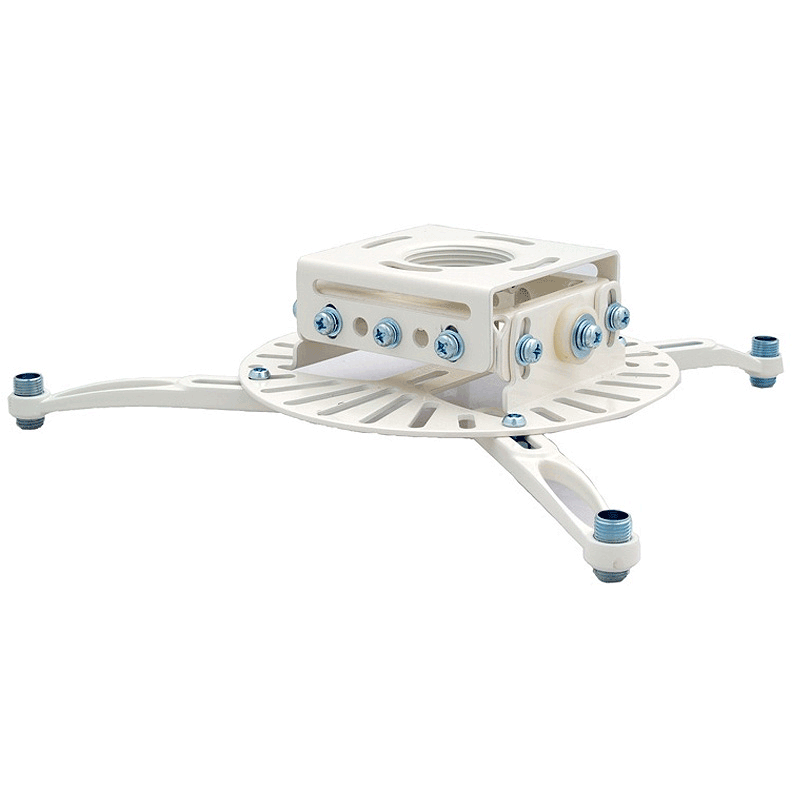

  • Included universal projector mount (Model PDS-PLUS).
  • Included wall-mount "Gearbox" for PC, MAC mini or control modules.
  • Single or dual-stud installation at 16, 18 or 24" spacing on wood or steel studs and concrete.
  • Integrated cable management.
  • Easy mounting without requiring a central stud (Most projector wall installations require a stud to be located in the center of your whiteboard/screen).
  • Optional audio upgrade with UNI-AUD kit (sold separately)
  • PDS-PLUS mount is OSHPD & DSA approved (OPA-1787-07)

Recommended for:

  • Projectors up to 50 lbs with mounting patterns within 16.43" diameter. Please use Premier Mounts' Mount Finder under "Additional Information" below for help selecting the appropriate mount or call our Sales Team.

Weight: Wall Plate Dimensions:
  30 lbs    26.04"W x 10.69"H

Assembly Instructions!

Click on the last image above for technical specifications.

Manufacturer Details

 Click Here to view more products by this manufacturer.

Click Here to ask a product question, or give us a call at 1-800-807-1477.

Additional Information

Click HERE to use Premier Mounts' Mount Finder!


Condition: new
Color: White
Height: 10.69 in. at wall plate
Width: 26.04 in. at wall plate
Delivery Options: Free Shipping
Ship Weight: 30 lbs.
Placement of Mount: Wall
Use of Mount: Projector
Extension: 6.5-18 in.
Pitch: +/-16.5 deg.
Roll: +/-7.5 deg.
Yaw: +/-41 deg.
Adjustability of Mount: Tilt Up Down, Swivel Left Right
Feature of Projector Mount: Short Throw Arm
Projector Mounting Pattern Reach: 00.01" - 14.00", 14.01" - 15.00", 15.01" - 16.00", 16.01" - 17.00"
Mfg Part # UNI-UPDS
