Premier Mounts Extra Large Swing Arm TV Wall Mount (Black) AM300-B

PREMIER MOUNTS
Mfg Part # AM300-B
Availability: In Stock
Delivered Free in 3-9 Days. Expedited Shipping Available.
MSRP $820.00
Price: $656.00 You Save $164.00 (20 %)

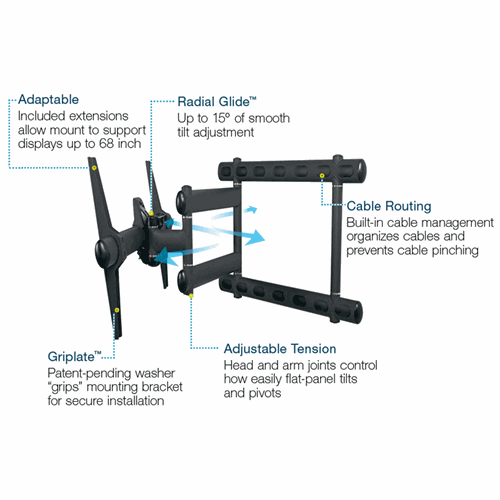

This full-articulation swing-out mount for flat-panels up to 300 lb./136 kg. Typically fits displays larger than 40 in. or displays with a mounting pattern of 225 x 225mm to 985 x 665mm. The AM300 extends 26 in. from the wall and allows up to 90º of swivel to both sides. The swing-out arm can be pulled out from the wall and move to the left or right, while providing 10º of tilt. It can easily be moved back to its home position, at a depth of 3.97 in. from the wall.

  • Fits 40-80" and larger flat panel displays with 225 x 225 (Min) - 985 x 665 (Max) mm VESA mounting patterns and 300 lbs.
  • Extends from 4"-26" from the wall
  • May be installed to swing from left (shown) or right
  • Smooth movement featuring Radial Glide® Technology
  • Built-in cable management
  • Features patented Griplate™ System
  • Elliptical design adds rigidity and aesthetics
  • 300 lb. weight capacity
  • Pivot: +37 degrees
  • Swivel: 90 degrees
  • Pitch: +/- 45 degrees
  • Tilt: +/- 10 degrees

Click HERE for Assembly Instructions!
