Peerless PLCM Series Ceiling Mount for 10-90 inch Screens (Various Models) PLCM

PEERLESS-AV
Mfg Part # PLCM-1, PLCM-2, PLCM-UNL
Availability: In Stock
Free Shipping - Delivered typically in 3-7 days. Expedited options available.

* denotes required field

Discount Alert*
Choose Model*
MSRP $230.00
Price: $144.99 You Save $85.01 (37 %)

The ideal solution for sports facilities, airports, hospitals, lobbies and retail stores, Peerless's PLCM ceiling mount offers a single straight column from the ceiling plate to the flat panel screen. All models feature:

  • Seven available models, designed to fit nearly any 10-90" flat panel screen.
  • VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)
  • +20/-5 degree adjustable tilt.
  • 360 degree swivel.
  • Optional landscape or portrait screen orientation.
  • Easy fitting on 1.5" schedule 40 NPT pipe.
  • Works with model-specific or universal adapter plate.
  • Theft-resistant security fasteners to secure the screen on the mount.
  • Integrated cable management.
  • Easy installation with all necessary hardware included for wood or concrete mounting.

For complete installation, you will require four items:

  1. One ceiling plate (if model number is followed by the code "CP," a standard CMJ470 ceiling plate for wood joists or structural concrete is included).
  2. One PLCM TV mount (included in all models).
  3. One fixed or adjustable-length extension column (except the PLCM-2 and PLCM-2-UNL, all models include one 36" long fixed column).
  4. One universal or model-specific adapter plate (if model number is followed by the code "-UNL", a universal adapter plate is included.)

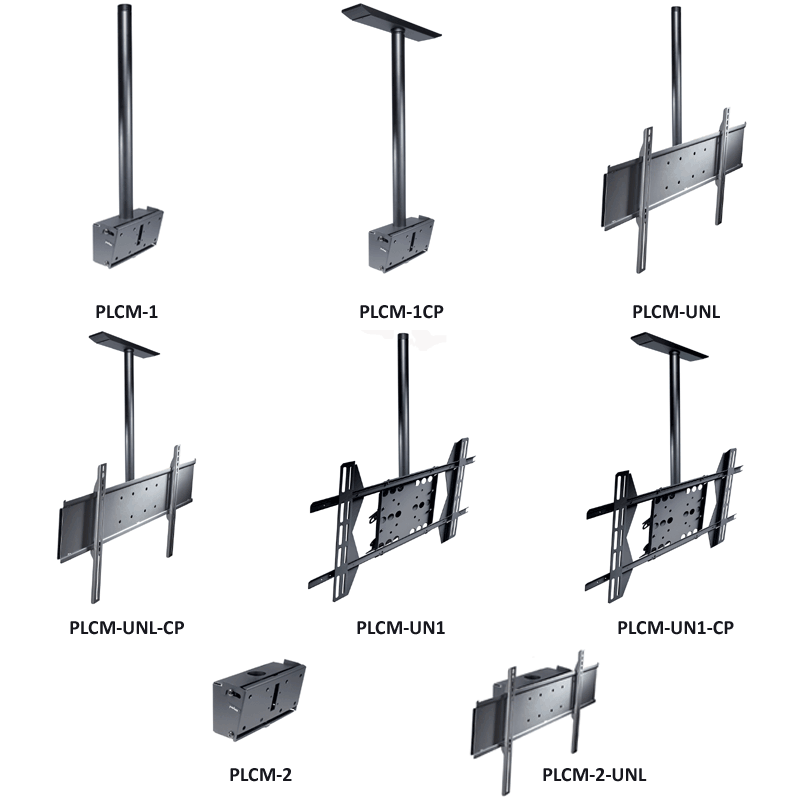

Model Details:

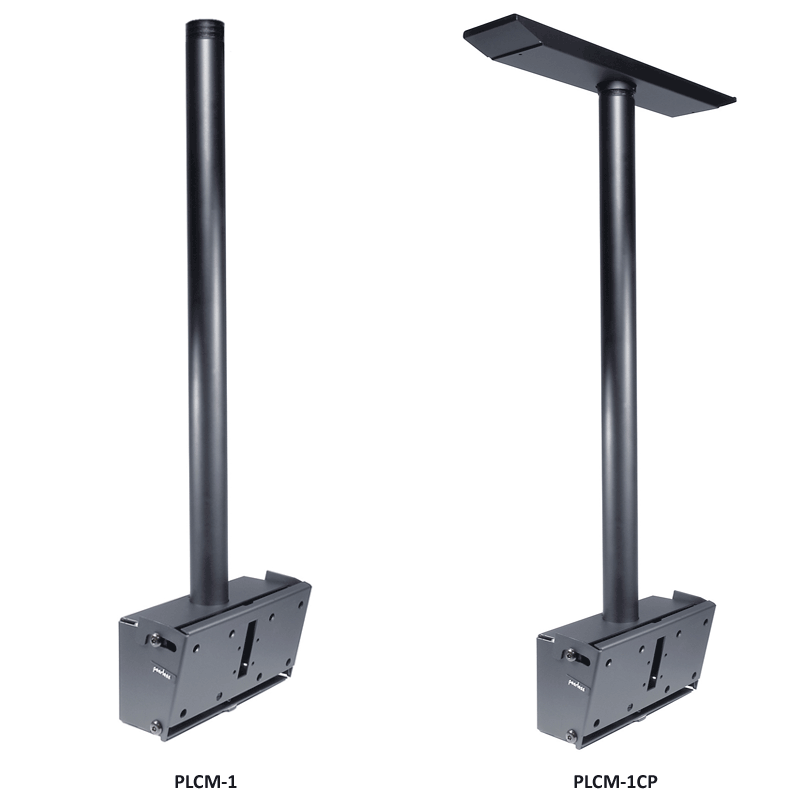

  • PLCM-1: for 10-90" screens up to 150 pounds -- Includes 1 PLCM mount and 1 36" column. Requires a ceiling plate and model-specific PLP adapter.
  • PLCM-1CP: for 10-90" screens up to 150 pounds -- Includes 1 PLCM mount, 1 36" column and 1 standard ceiling plate. Requires a model-specific PLP adapter.

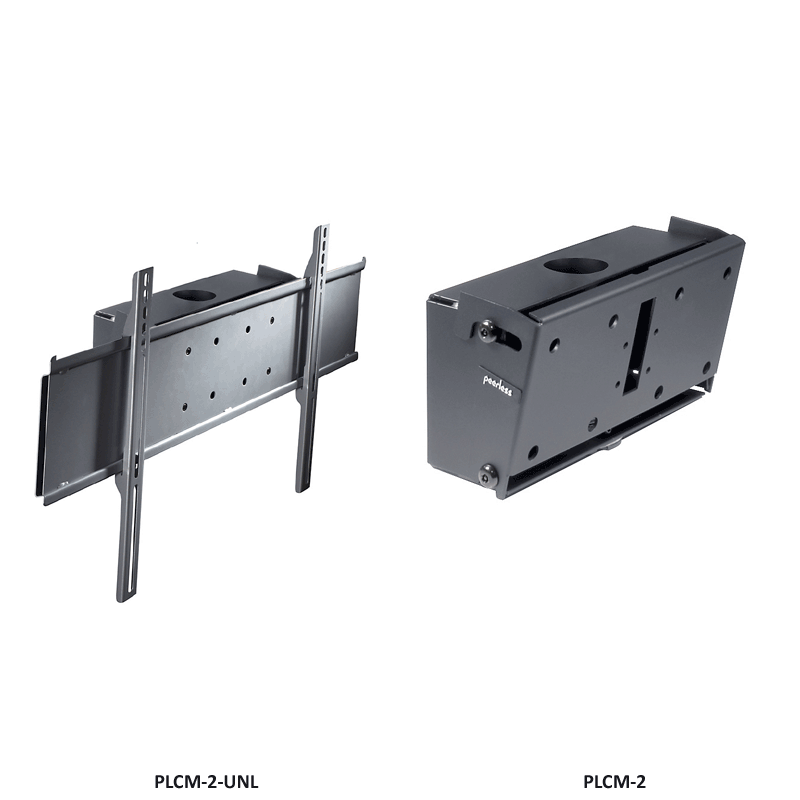

  • PLCM-2: for 10-90" screens up to 150 pounds -- Includes 1 PLCM mount only. Requires extension column, ceiling plate and PLP adapter.
  • PLCM-2-UNL: for 32-90" screens up to 150 pounds with mounting holes up to 600 x 400mm -- Includes 1 PLCM mount and 1 universal PLP-UNL adapter plate. Requires extension column and ceiling plate.
  • PLCM-4 (mounts in-line onto 1.9" or 2.0" extension columns for stacking multiple displays): for 10-90" screens up to 150 pounds -- Includes 1 PLCM mount and one stacking clamp. Requires extension column, ceiling plate and PLP adapter.

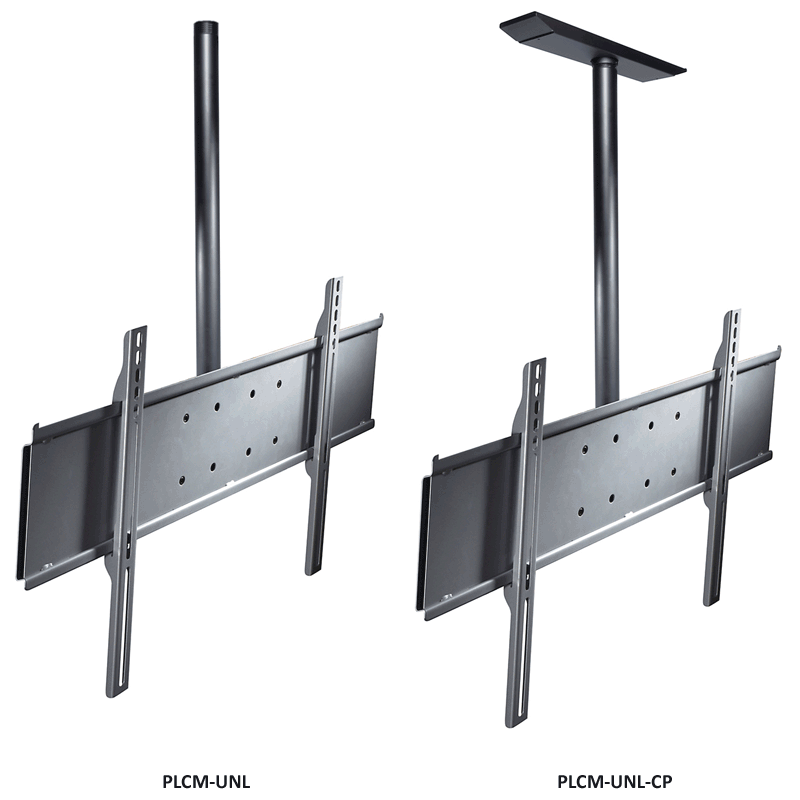

  • PLCM-UNL: for 32-90" screens up to 150 pounds with mounting holes up to 600 x 400mm -- Includes 1 PLCM mount, 1 36" column and 1 universal PLP-UNL adapter plate. Requires a model-specific ceiling plate.
  • PLCM-UNL-CP (complete mounting package): for 32-90" screens up to 150 pounds with mounting holes up to 600 x 400mm -- Includes 1 universal ceiling plate, 1 PLCM mount, 1 36" column and 1 universal PLP-UNL adapter plate. No other items are required!

Use Peerless's Mount Finder tool to select the appropriate model for your screen. Sound confusing? Call our Sales Team for help!



**Click on the last images above for detailed dimensions.
