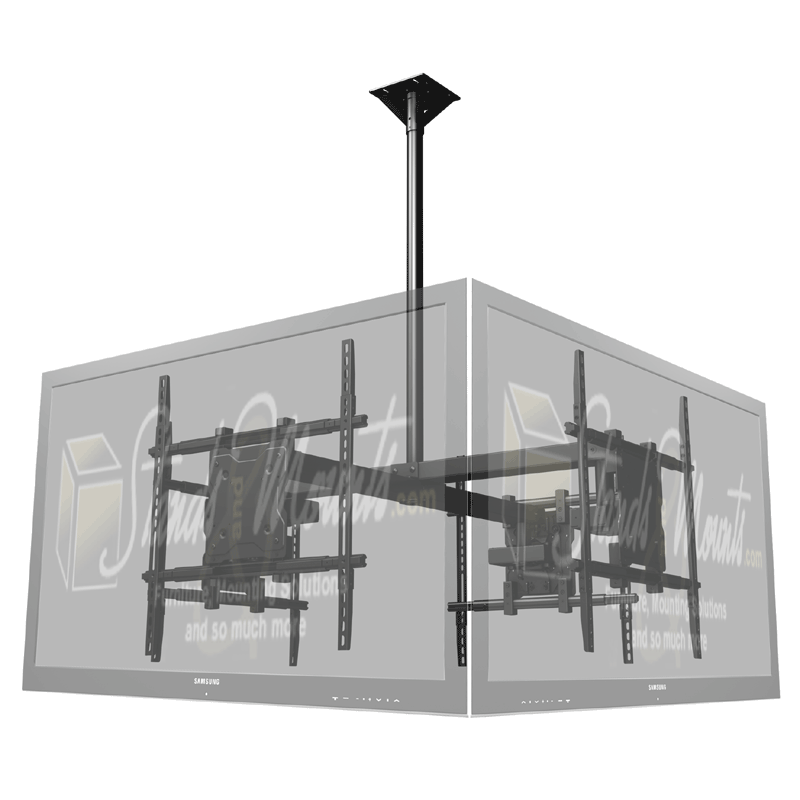

Crimson Large TV Ceiling Mount (Quad, Universal, 800x672mm) CQUAD65

A complete hardware kit for mounting 4 displays from the ceiling. Includes all hardware required for installation (with exception of ceiling bolts). Comes complete with a 10' pipe drop and a heavy duty ceiling adapter for structural or Unistrut mounting. Features through-column cord management and lockable rotation of entire system or individual screens post installation. It features:

• Works with 40-60" TV's (52.98" max width) with mounting patterns up to 800x672mm and 125 lbs. each
• VESA compatible 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
• 10' length of extension column and heavy duty structural ceiling interface
• Pre-assembled components are easily bolted together
• System ships in standard boxes, not requiring special shipping and handling arrangements or charges
• Fast and easy installation
• Up to 20° of continuous tilt and 360° lockable rotation
• Post installation screen leveling without use of tools
• Pre-sorted hardware pack for easy installation

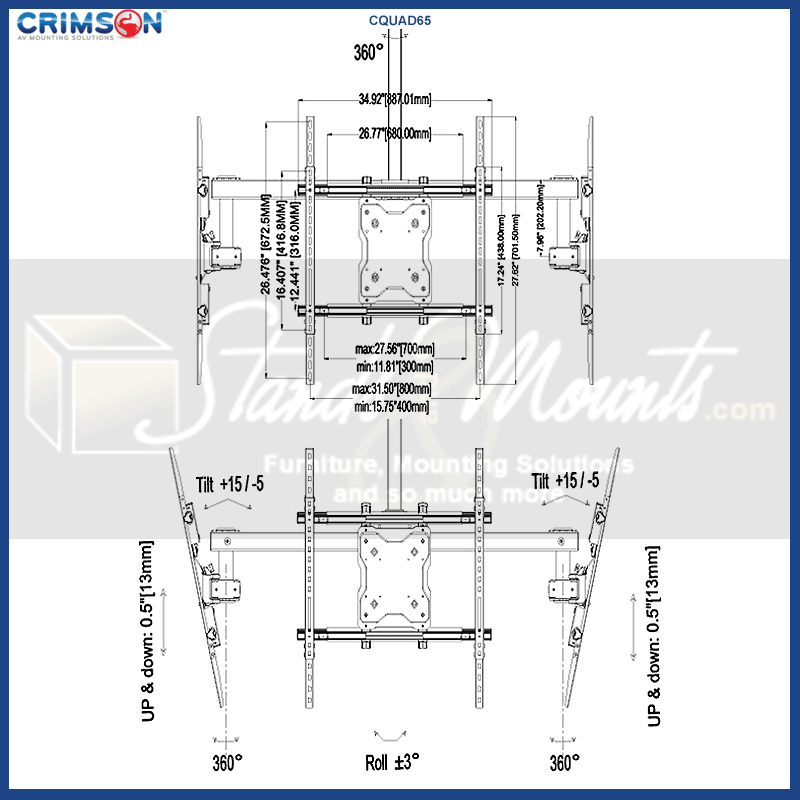

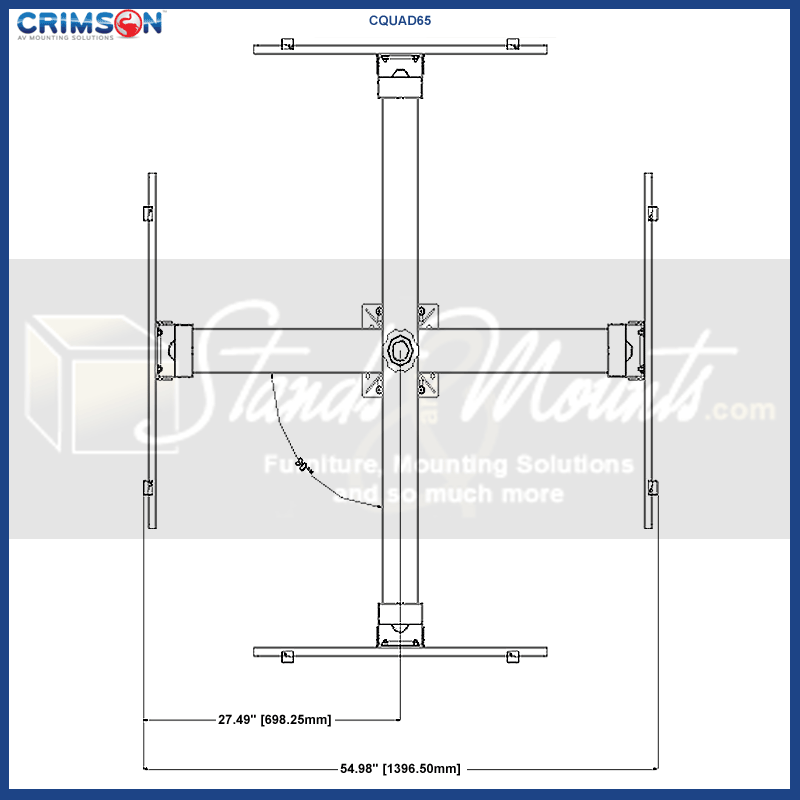

**Click on the last image above for detailed dimensions.
