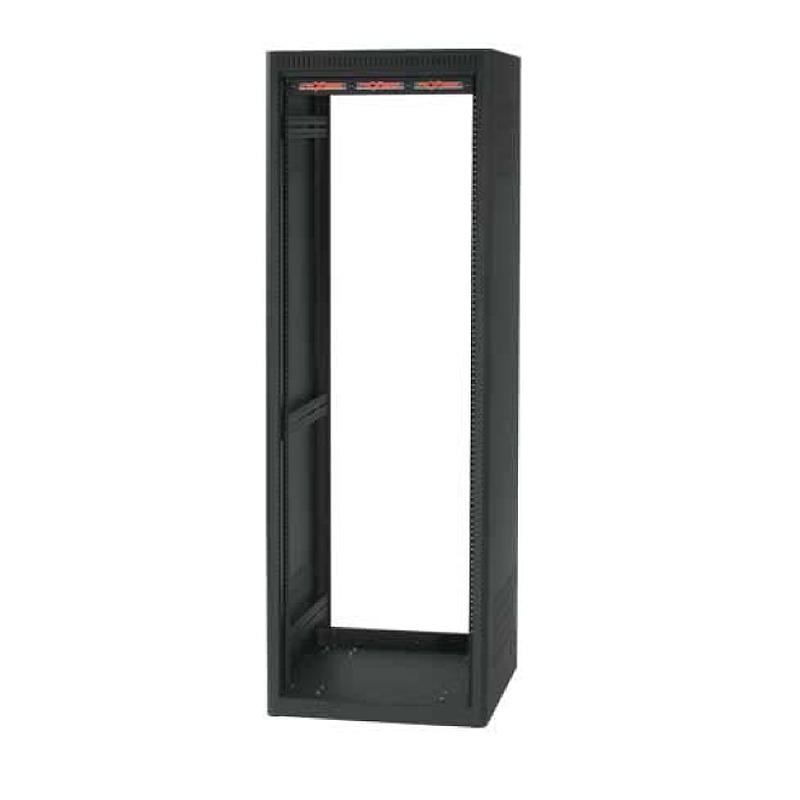

Raxxess KAR Series Component Rack (Black) KAR

The Raxxess KAR Enclosed Rack features welded, 16-gauge cold-rolled steel construction with fully adjustable front rack rail (optional rear rail kits available). Rack rail supports are punched with quarter inch holes for cable tie off points. The fully
enclosed KAR series of racks is available in outside depths of 22” and 28”, accommodating equipment up to 20" and 25" respectively.

Features include removable conduit knockout panels at both the top and bottom rear of the enclosure. Additional knockouts are located on each side of the rack for passing cable directly through and allowing multiple racks to be connected. A unique cable strain-relief furrow is located in the bottom pan of the rack, as are punched holes to accommodate optional casters without the use of a costly caster base. Sides, top and bottom have venting slots to promote air flow for cooling.

Features:

• Welded, 16-gauge cold-rolled steel construction.
• Fully adjustable front rack rail with optional rear rail kits also available.
• 16-gauge steel rack rail supports are punched with 1/4" holes for cable tie off points.
• Available in outside depths of 22" and 28", accommodating equipment up to 20" and 25" respectively.
• Removable conduit knockout panels at both the top and bottom rear of the enclosure.
• Additional knockouts are located on each side of the rack for passing cable directly through and allowing racks to be ganged.
• A uniqe cable strain-relief furrow is located in the bottom pan of the rack, as are punched holes to accommodate optional casters without the use of a costly caster base.
• Sides, top and bottom have venting slots to ensure adequate cooling.

Model Details:

• KAR-18-22: (18RU) 36.00" H x 22" W x 22" D (20" usable)
• KAR-18-28: (18RU) 36.00" H x 22" W x 28" D (26" usable)
• KAR-24-22: (24RU) 46.50" H x 22" W x 22" D (20" usable)
• KAR-24-28: (24RU) 46.50" H x 22" W x 28" D (26" usable)
• KAR-35-22: (35RU) 65.75" H x 22" W x 22" D (20" usable)
• KAR-35-28: (35RU) 65.75" H x 22" W x 28" D (26" usable)
• KAR-40-22: (40RU) 74.50" H x 22" W x 22" D (20" usable)
• KAR-40-28: (40RU) 74.50" H x 22" W x 28" D (26" usable)
• KAR-44-22: (44RU) 81.50" H x 22" W x 22" D (20" usable)
• KAR-44-28: (44RU) 81.50" H x 22" W x 28" D (26" usable)

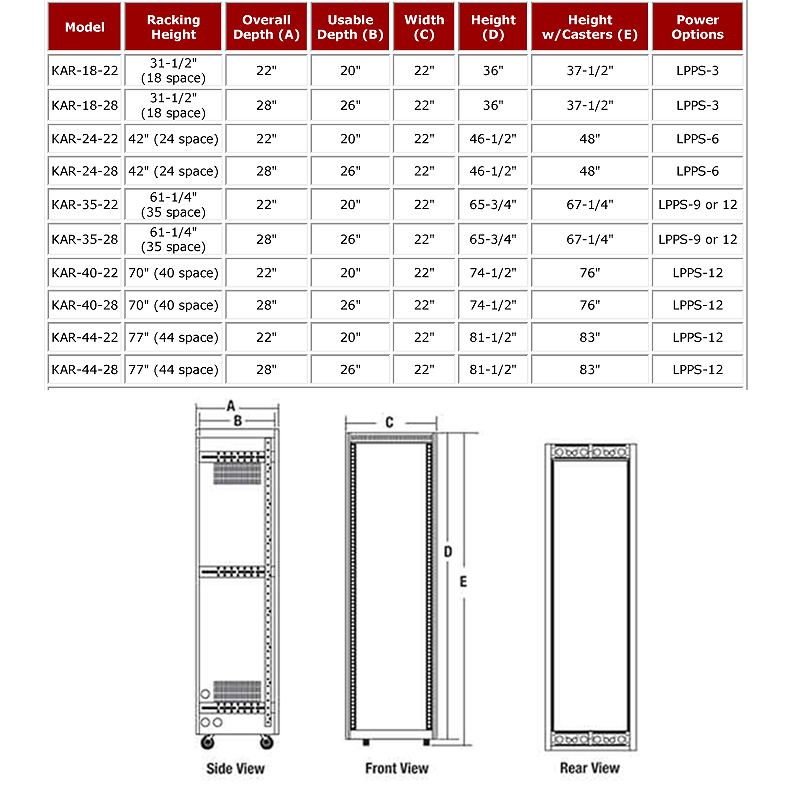

• Click on "View More Images" above for detailed specifications!
