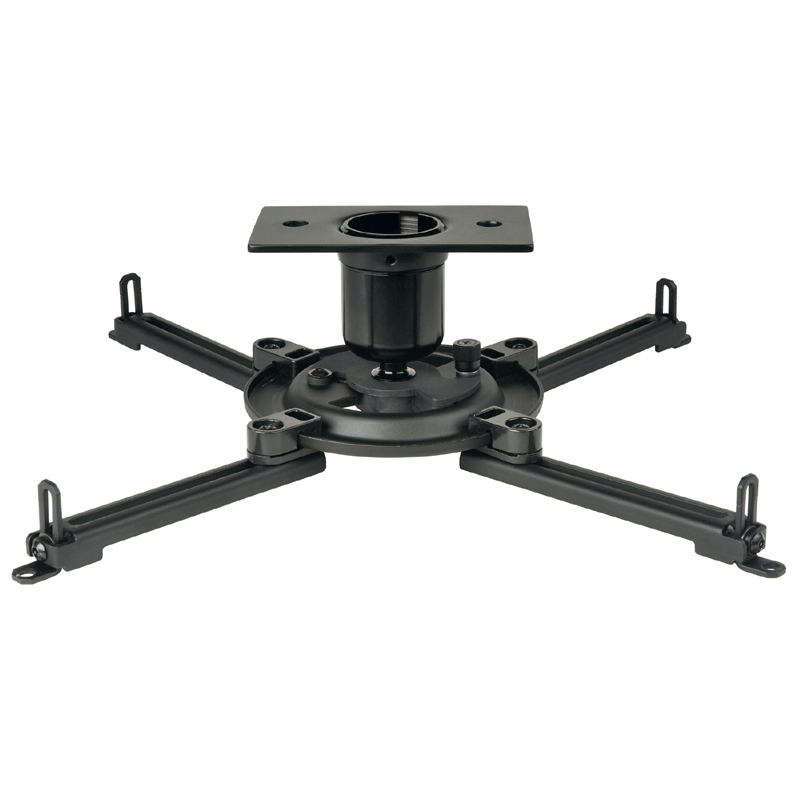

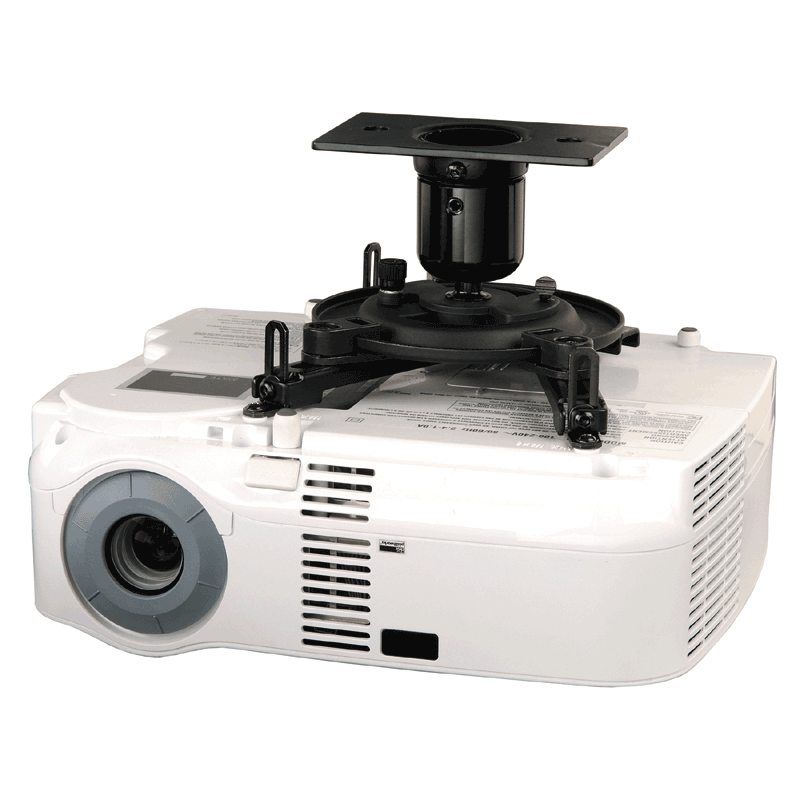

Peerless Vector Pro II Universal or Model Specific Projector Mount PJF2-

Peerless's PJF2 Vector Pro II can be flush mounted, dropped from the ceiling with a 1.5" NPT extension column or wall mounted with any 0.5" threaded rod. It features:

• 30° (±15°) pitch, 30° (±15°) roll, 360° yaw
• A ball-and-socket design for one-touch, multi-directional positioning.
• Pre-installed ArmorLock security screws at all connection points.
• Quick- release mechanism for easy maintenance.
• 1.5"(38 mm) cable access hole, allowing cables to be routed internally through the projector mount.
• Included structural ceiling plate for easy flush mounting.
• A spider-legged universal adapter plate, extending up to 17.63" (448 mm) to fit almost any modern projector (PJF2-UNV)!
• Heavy-gauge steel construction.
• A scratch-resistant, black, fused epoxy finish.
• A pre-assembled design to greatly reduce necessary installation time.
• Easy installation with extension column connector and all necessary hardware included.

PLEASE NOTE: Use Peerless's Mount Finder tool to select the appropriate model for your projector. Sound confusing? Call our Sales Team for help!

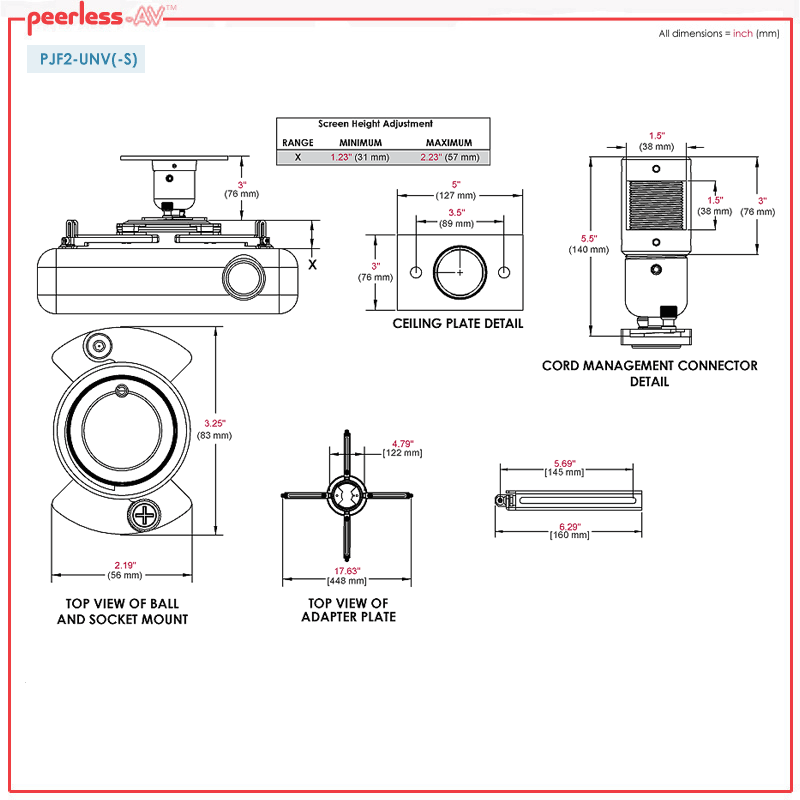

**Click on the last image above for detailed dimensions of model PJF2-UNV.
