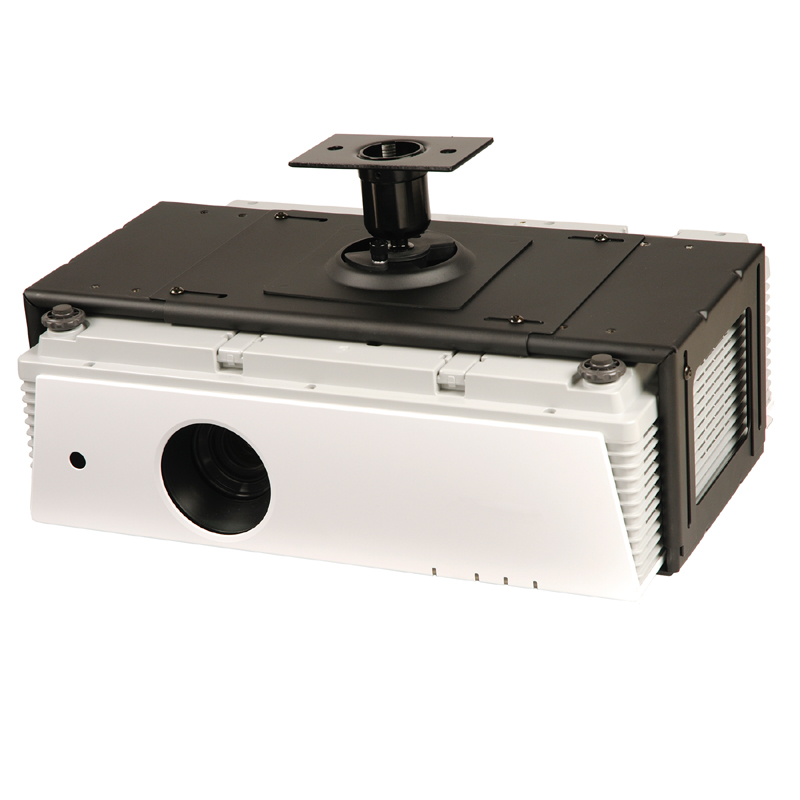

Peerless Universal Vector Pro II Clamp Style Projector Mount PJF2

Peerless's Universal Vector Pro II features:

• 30° (±15°) pitch, 30° (±15°) roll, 360° yaw
• Included ceiling plate.
• Spring-loaded captive screws for easy projector removal.
• Direct threading on any ceiling plate that accepts standard 1.9" OD tubing.
• A universal clamp-style projector mounting bracket.
• Heavy-gauge steel construction.
• A scratch-resistant, black, fused epoxy finish.
• 50 pound weight capacity.
• Included 1/4" spacers, which allow necessary cables to be routed above the ceiling plate, if desired.
• Included structural ceiling plate, extension column connector and ArmorLock security features for integrated safety from the projector to the ceiling.
• Fully assembled shipping for quick and easy installation.

Model Details:

• PJF2-35 for projectors measuring 2-3.75" H x 7.5-11.5"W.
• PJF2-40 for projectors measuring 3.25-5.5"H x 8.5-14.75"W.
• PJF2-45 for projectors measuring 5.5-10"H x 10.75-18.75"W.

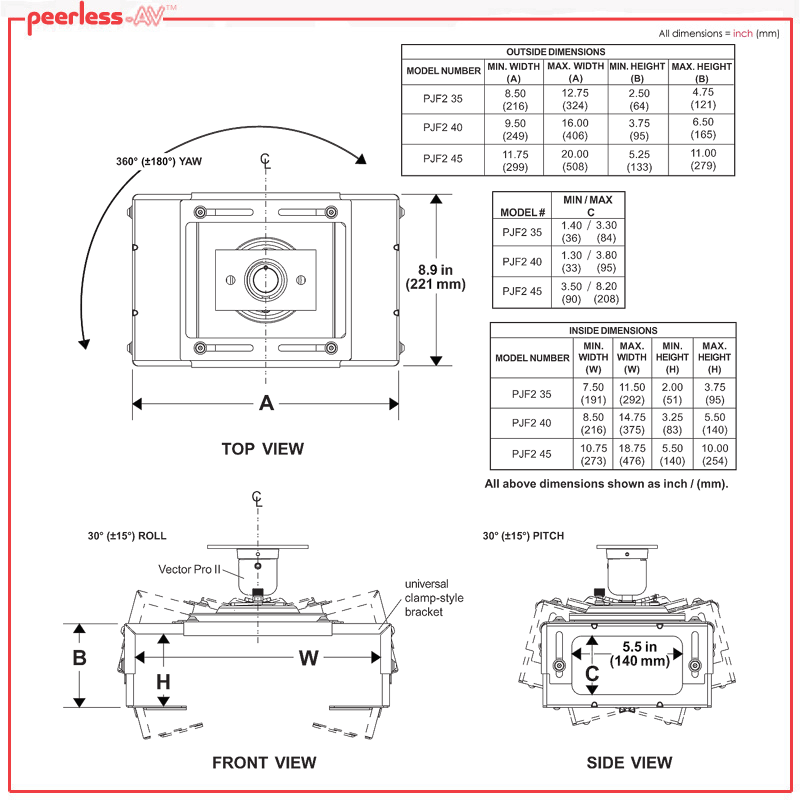

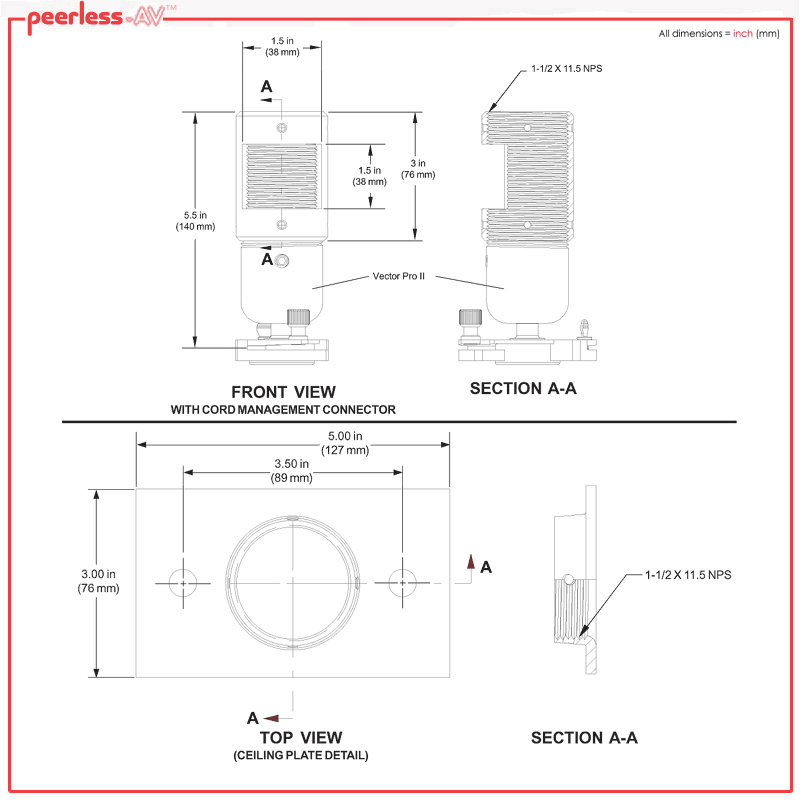

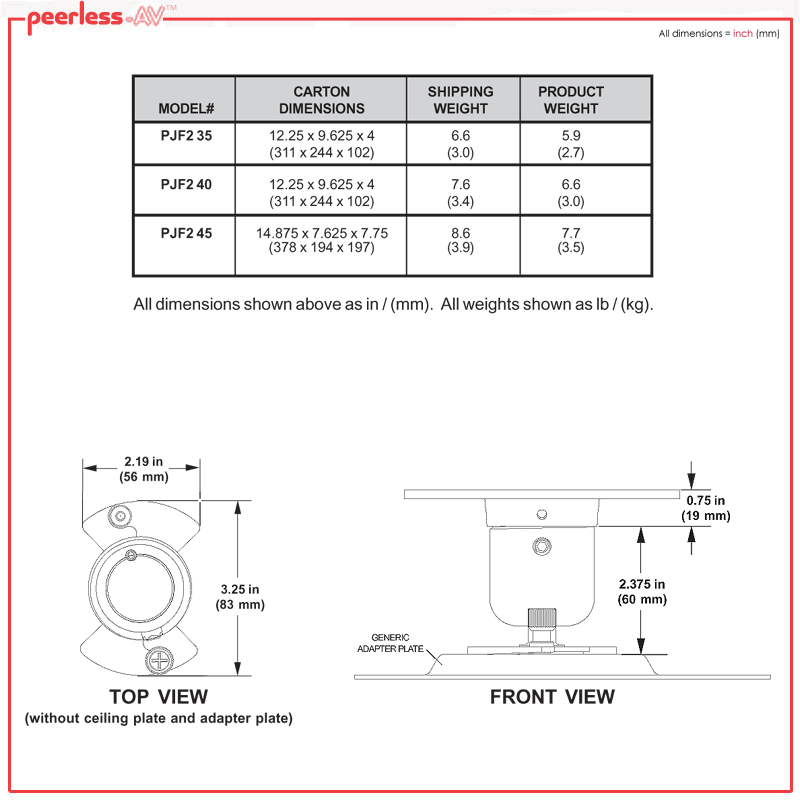

**Click on the last images above for detailed dimensions.
