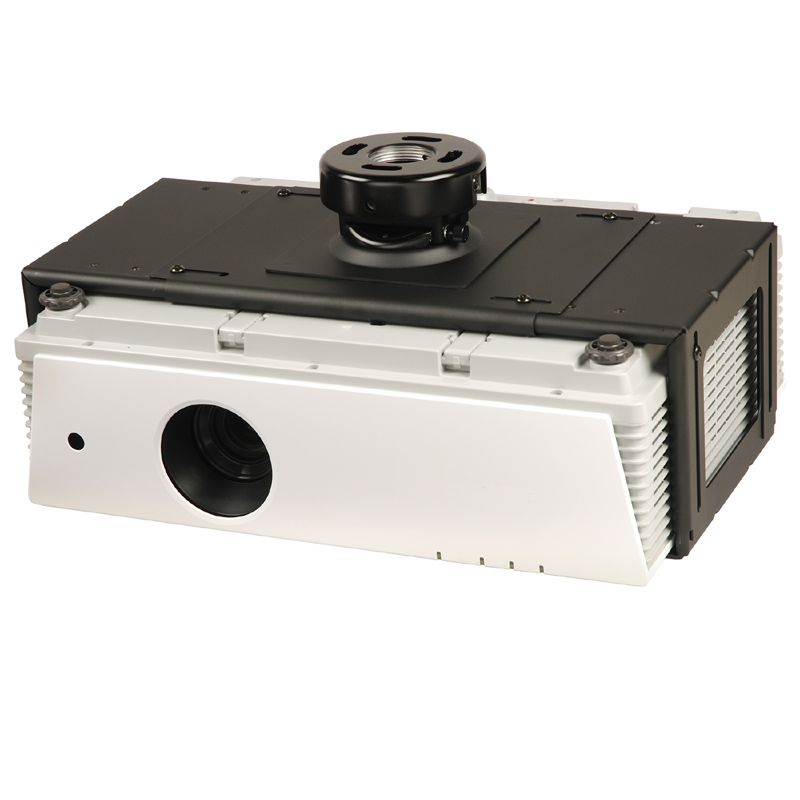

Peerless PRS Projector Mount with Universal Clamp-Style Adapter Plate PRS

An ideal solution for projectors that do not have mounting holes or cannot be inverted, the PRS clamp-style universal projector mount has the lowest profile on the market today! It features:

• Independent tilt, swivel and leveling adjustments for easier image alignment.
• A low-profile design, keeping the projector close to the ceiling to minimize mount visibility.
• Included clamp-style, universal adapter plate, designed to hold projectors either inverted or upright.
• 25 pound weight capacity.
• -20/+5° tilt.
• ±10° leveling adjustment.
• 360° swivel when attached to any extension column (±15°swivel when flush mounted).
• Sturdy steel construction.
• A scratch-resistant, black fused epoxy finish.

• Built-in cable management holes, routing cords through the extension cord.
• Included ArmorLock security hardware for easy theft protection.
• A quick-release knob for easy servicing and maintenance.
• Large side openings in clamp for easy access to projector ports.
• Pre-assembled shipping to save you time.
• Easy installation, with all necessary mounting hardware included for single wood beam or concrete slab.

Model Details:

• PRS-35 for projectors measuring 2 - 3.75"H x 7.5 - 11.5"W.
• PRS-40 for projectors measuring 3.25 - 5.5"H x 8.5 - 14.75"W.
• PRS-45 for projectors measuring 5.5 - 10"H x 10.75 - 18.75"W.

PLEASE NOTE: It is the responsibility of the installer to check all vents and ports on the mounted projector and ensure they are NOT obstructed by the universal mount. Blocked vents may cause damage to the projector and could be a fire hazard. Use Peerless's Mount Finder tool to select the appropriate mount for your projector. Sound confusing? Call our Sales Team for help!

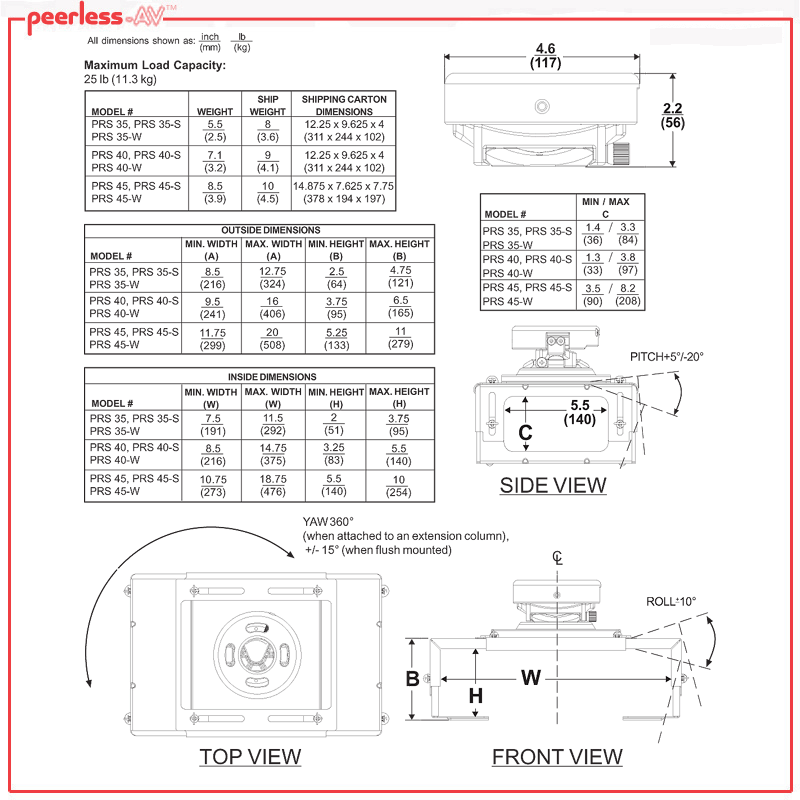

**Click on the last image above for detailed dimensions.
