Peerless In-Wall Articulating Wall Mount for 22-40 inch Screens (Black or Silver) IM740

Mount your flat panel truly FLAT agains the wall! Peerless's IM740 in-wall articulating wall mount features:

• Self-locating stud tabs that center the in-wall box snugly between standard 16" wood stud centers
• Can be inverted to position screen to the right or the left
• Up to 16" of total extension
• VESA 75, 100, 200x100 and 200x200mm mounting pattern compatibility
• 3 height adjustment points inside the wall box to set your screen at the desired vertical position
• A removable gang box and cable management access plate for easy installation
• Included SA740P wall mount for 22-40" flat panel screens
• A scratch-resistant, fused epoxy finish in high gloss black or silver
• 80 pound weight capacity
• 5-year Limited Manufacturer's Warranty

Recommended for:

• 22-40" flat screens up to 80 lbs with mounting patterns up to 200x200 VESA. Please use Peerless' Mount Finder tool to select the appropriate model for your screen. Sound confusing? Call our Sales Team for help!

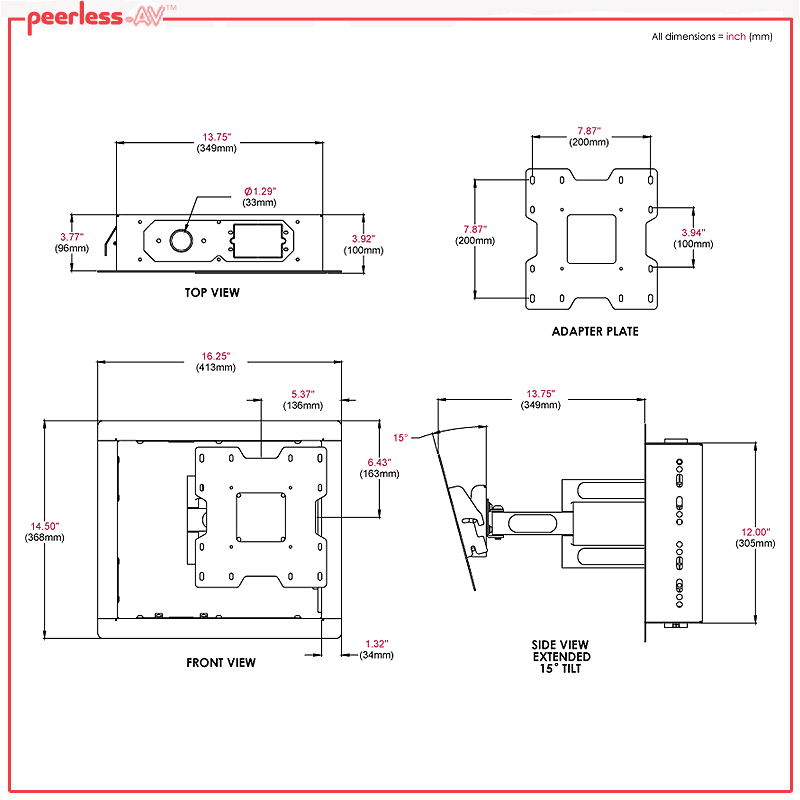

**Click on the last image above for detailed dimensions.
