Chief's LCDA-series adjustable, inverted, projector ceiling mounts features:
- A universal mount for upright projectors.
- A compact design, employing a single, adjustable tray and allowing for post-installation tightening for a safe and secure fit.
- Easy installation.
- Precise image registration.
- Easy lamp and filter access for quick maintenance and cleaning.
- A black, powder-coat finish.
- +/- 5 degree tilt, +/-90 degree swivel and 360 degree rotation for optimal viewing.
- Quick projector disconnect/reconnect for frequent removals.
- A new "open-air" design for improved ventilation.
- Three ceiling mounting methods. (For more information, see below.)
- An integrated cable management system to keep all wires neatly and safely tucked away.
- 50lb weight capacity.
Three Ceiling Mounting Methods:
1. Flush Mount to suitable ceilings. (Use CMA-250 Ceiling Mount Adapter.)
2. Threaded rod mounting, using integrated holes in the top of the mount. (Threaded rod not included.)
3. 1.5" NPT threaded extension column mounting. (Threaded column not included.)
*In addition to these three ceiling mounting methods, you may attach RPA mounts to the wall using the WMA-300 Wall Mount Accessory Arm.
FAQs
Q. How do I know which projectors will work with the LCDA Series?

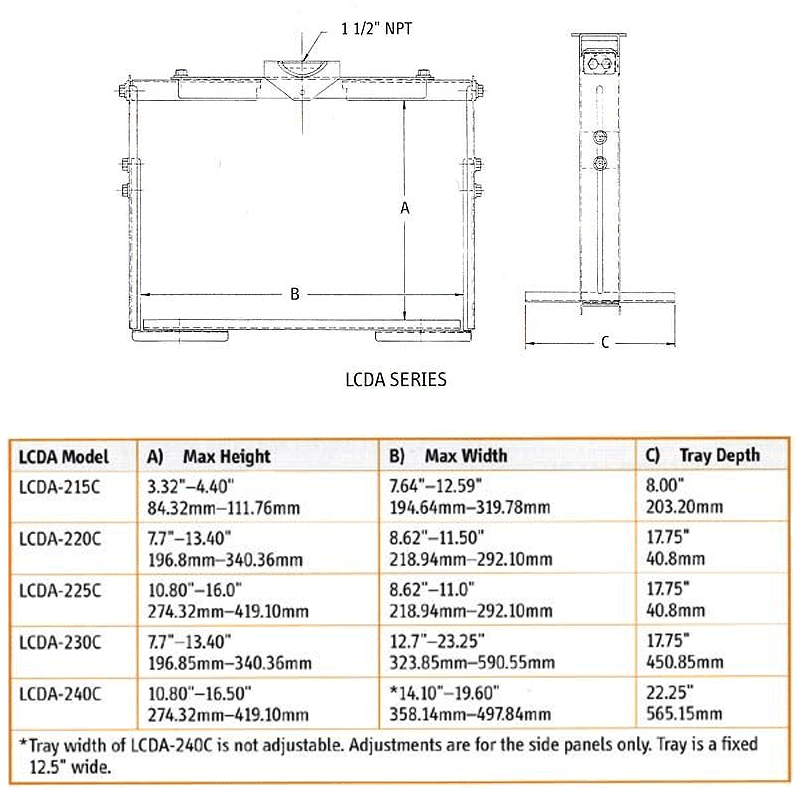

A. The LCDA Series can be used for any projector that will fit within the maximum equipment size – refer to the dimension chart and diagram in the additional images above.
Q. How do I know which LCDA mount to select?
A. Verify that your projector can be non-inverted. Find the model with the maximum equipment dimensions that best fit your projector dimensions.
Q. Do I need to order a projector bracket?
A. No projector bracket is needed with the LCDA Series. The projector rests on a tray and the mount adjusts around it for a secure fit.
Q. How much weight does the mount hold?
A. Each mount is custom designed to support the weight of the projector models specified. However, your ceiling must hold at least 5x the total weight of your installation.
Q. Do I need any additional accessories to install the LCDA?
A. The LCDA can be flush mounted to the ceiling by ordering the CMA-250 Ceiling Mount Adapter for a low-profile, simple installation. However, often times you will need to lower the projector from a structural, finished or suspended ceiling. For these common applications, you will want to order the appropriate accessories.
Q. If I use the LCDA with a Suspended Ceiling Kit, do I need an extension column?
A. Yes. Any length 1 1/2 in. NPT threaded extension column will work with Chief’s Suspended Ceiling Kits.
 |
Click Here to view more products by this manufacturer. |
Click Here to ask a product question, or give us a call at 1-800-807-1477.
Additional Information
Click HERE for Chief's 'Compatibility Lists' and find out which mount accommodates your projector.
